Hydraulic pump unit for car carrier

Hydraulic pump unit discription

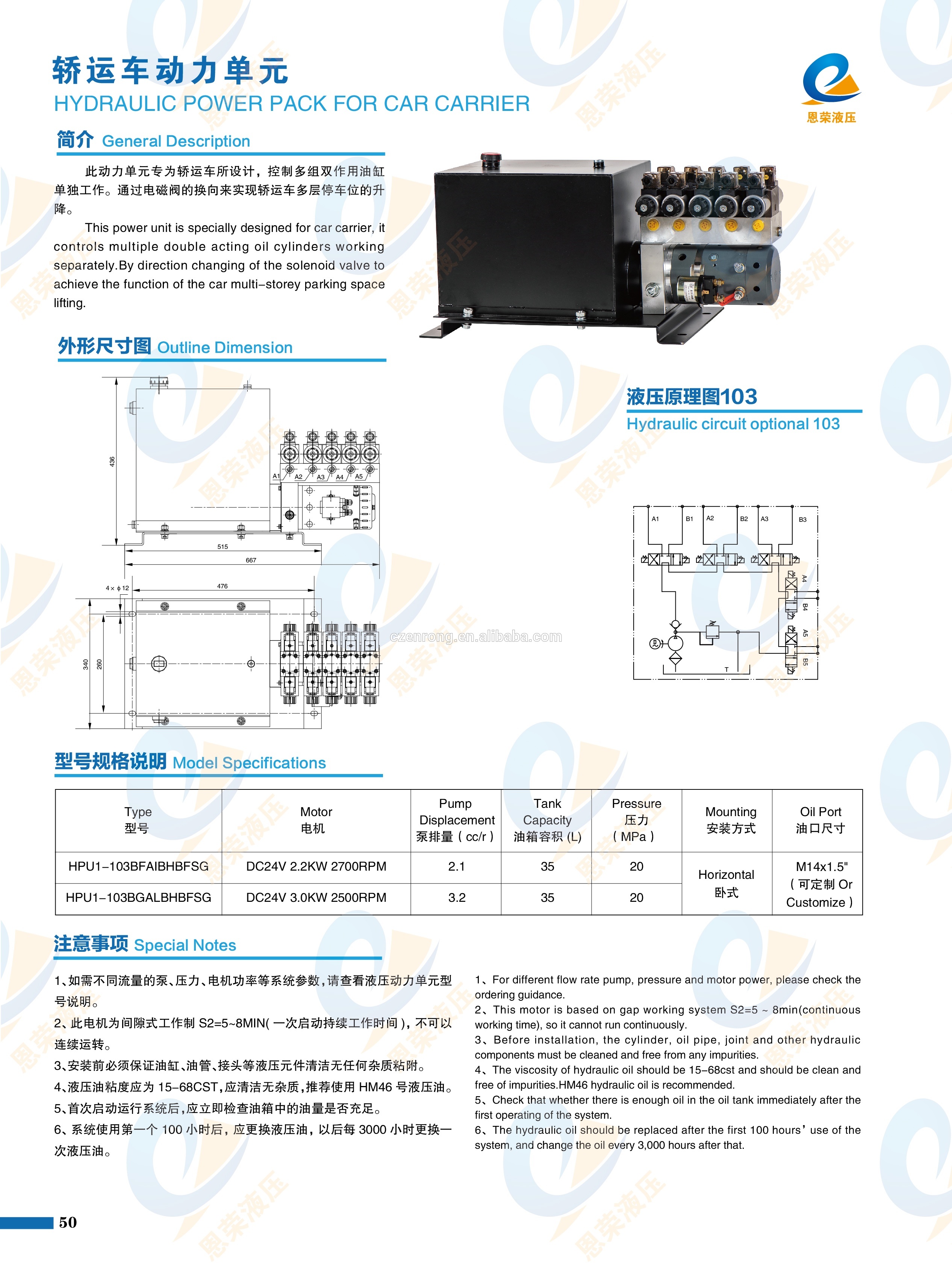

This power unit is specially designed for car carrier, it controls multiple double acting oil cylinders working separately.Hydraulic Power Unit For Car,By direction changing of the solenoid valve to achieve the function of the car multi-storey parking space lifting.

Dock equipment such as telescopic conveyors, dock levelers, tail lifts,Electric Hydraulic Valve For Tractor, vital for warehouse loading and unloading solutions where goods need to be handled rapidly and efficiently.

2, Hydraulic equipment, mainly engaging in operation of hydraulic pump station, hydraulic power unit and other products and design and manufacturing of hydraulic system.

Hydraulic Lifter Remover

Technical Parameter

	pump displacement	tank capacity	pressure	mounting	oil port	Length
12V 2.0KW 2500RPM	1.7CC/R	9L	20MPA	HORIZONTAL	M18*1.5''
24V 0.8KW 3500RPM	2.5CC/R	9L	20MPA	HORIZONTAL	M18*1.5''

Application Area

Other Main Products

WE ACCEPT CUSTOMIZED

Choose the oil circuit you want, and the parameter of the motor, pump , tank, pressure and oil port, below is how to choose the model NO:
